#1 Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by john47 • 28 December 2023, 09:31
Witam serdecznie wszystkich

Jest przebity mosfet PQB11 i uszkodzony kondensator.

Zwarcia nie ma, ale laptop nie startuje. Sprawdziłem PUB1 BQ24781 i jest tylko n.28 - 19V, czy mogę go podmienić na BQ24780S?

Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by Google Adsense [BOT] • 28 December 2023, 09:31

#3 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by john47 • 28 December 2023, 12:16
Przepraszam zapomniałem wpisać
Pin n.28 - 19V
Reszta "0"

#4 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by matic • 28 December 2023, 15:02
john47 wrote:Pin n.28 - 19V
The rest "0"
The "ACDET" voltage on pin 6 of the charger chip is missing and that's most likely the reason for the missing voltages.

Have you tested the machine with a power supply that has a suitable DC plug? If so, inspect the DC socket of the machine for any physical damage.
Measure the voltages to ground on pins 1, 2 of transistor PQB17.

Transistor PQB17 pinout:

#5 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by john47 • 28 December 2023, 17:00

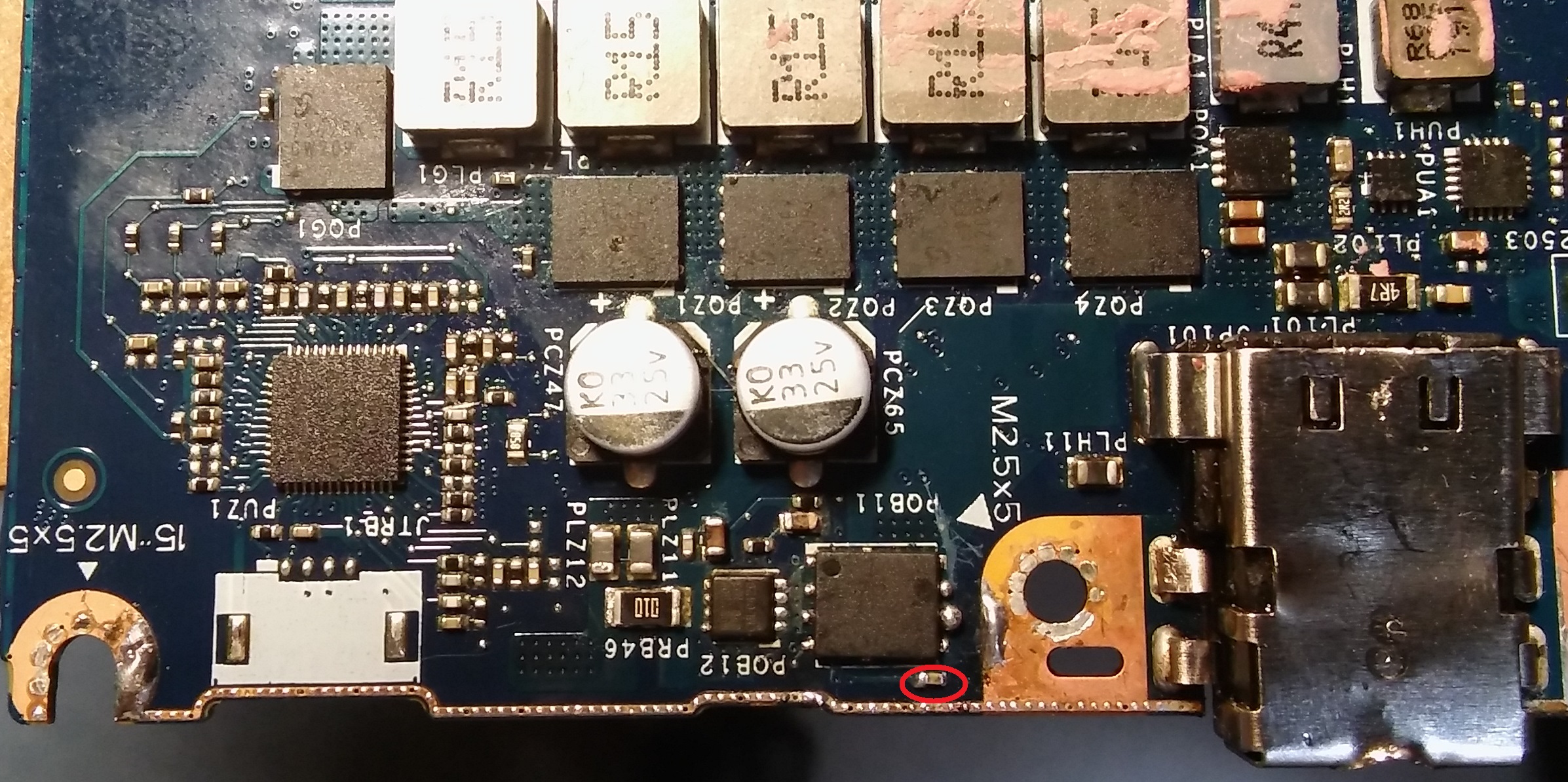

Laptopa już ktoś próbował naprawić. Gniazdo było robione, wygląda średnio.
PRB44 n.1 – 19V

PQB17
n.1 – 0V
n.2 – 0V


PQB11 - wsadzony za słaby 4939N

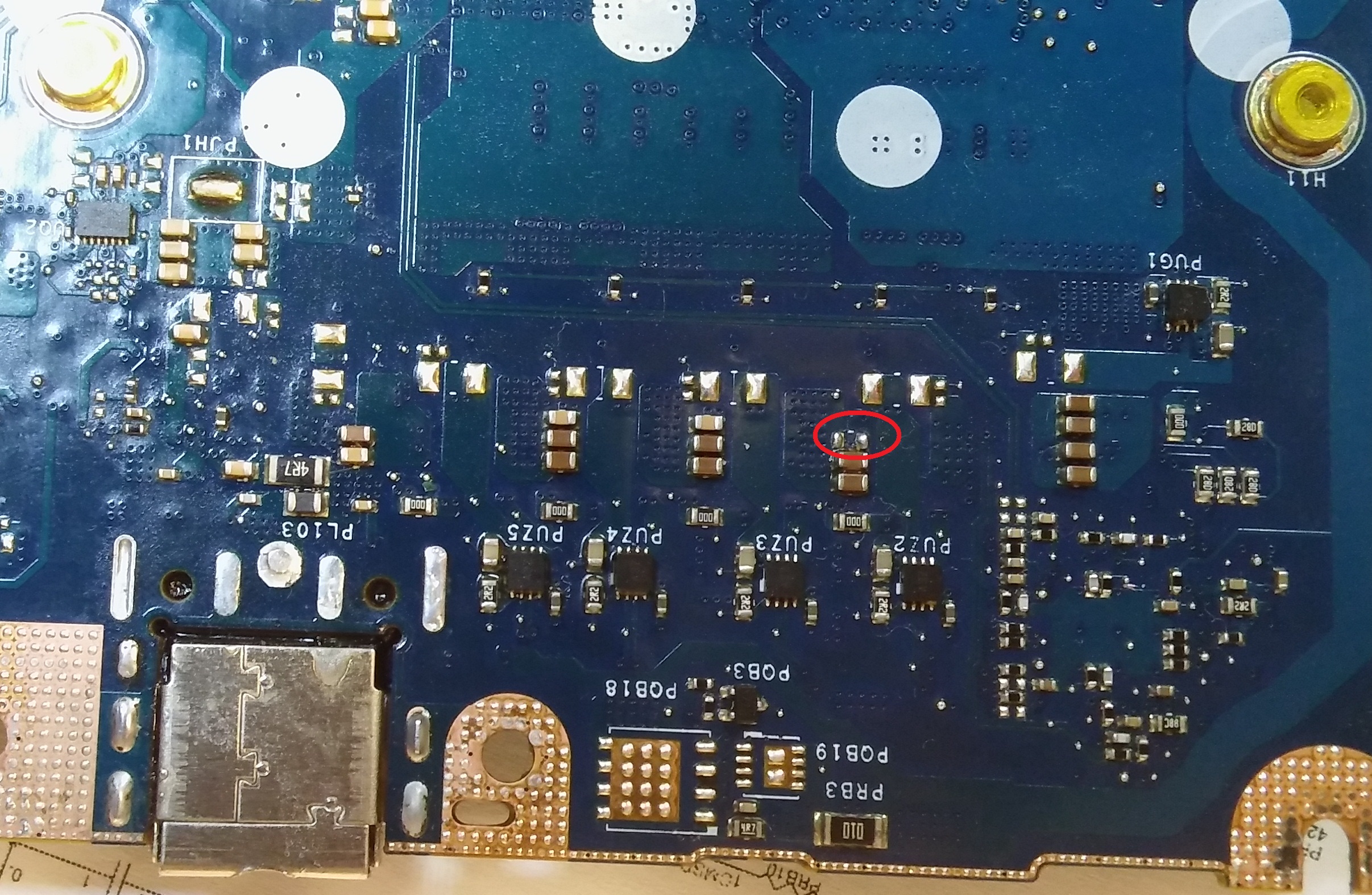

Zaznaczenie w kółku to kondensator czy rezystor?

#6 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by matic • 28 December 2023, 17:48
john47 wrote:Zaznaczenie w kółku to kondensator czy rezystor?
It's a thermistor (temperature dependent resistor) PRB47.
PRB47= Thermistor PTC 10kΩ, package 0402 (TPM0S103P130R).
Datasheet attached.

The damage on this thermistor may be responsible for the missing voltage on the "ACDET" pin of charger chip.
Measure the resistance of this thermistor. The resistance should be around 10kΩ at room temperature.



You have to be logged in to view the files attached to this post.

#7 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by john47 • 17 January 2024, 09:39
matic wrote:PRB47= Thermistor PTC 10kΩ, package 0402 (TPM0S103P130R)

Wymieniony

Mam tylko na BQ24781
6 – 2,63V
23 – 1,06V
24 – 1,06V
25 – 1,06V
26 – 0,4V
27 – 0,4V
28 – 19,6V

Pobór 0,022A

#9 Re: Acer AN515-55 mb: GH51M LA-K862P Rev:1A Nie startuje/zwarta główna linia

by john47 • 7 February 2024, 13:44
Wymienione
PRB47
PQB11
PQB12
PUB1
i kilka kondensatorów.

Dziękuję. Działa.
