Re: Asus Transformet TF103c brak elementu
by Google Adsense [BOT] • 30 March 2016, 14:36

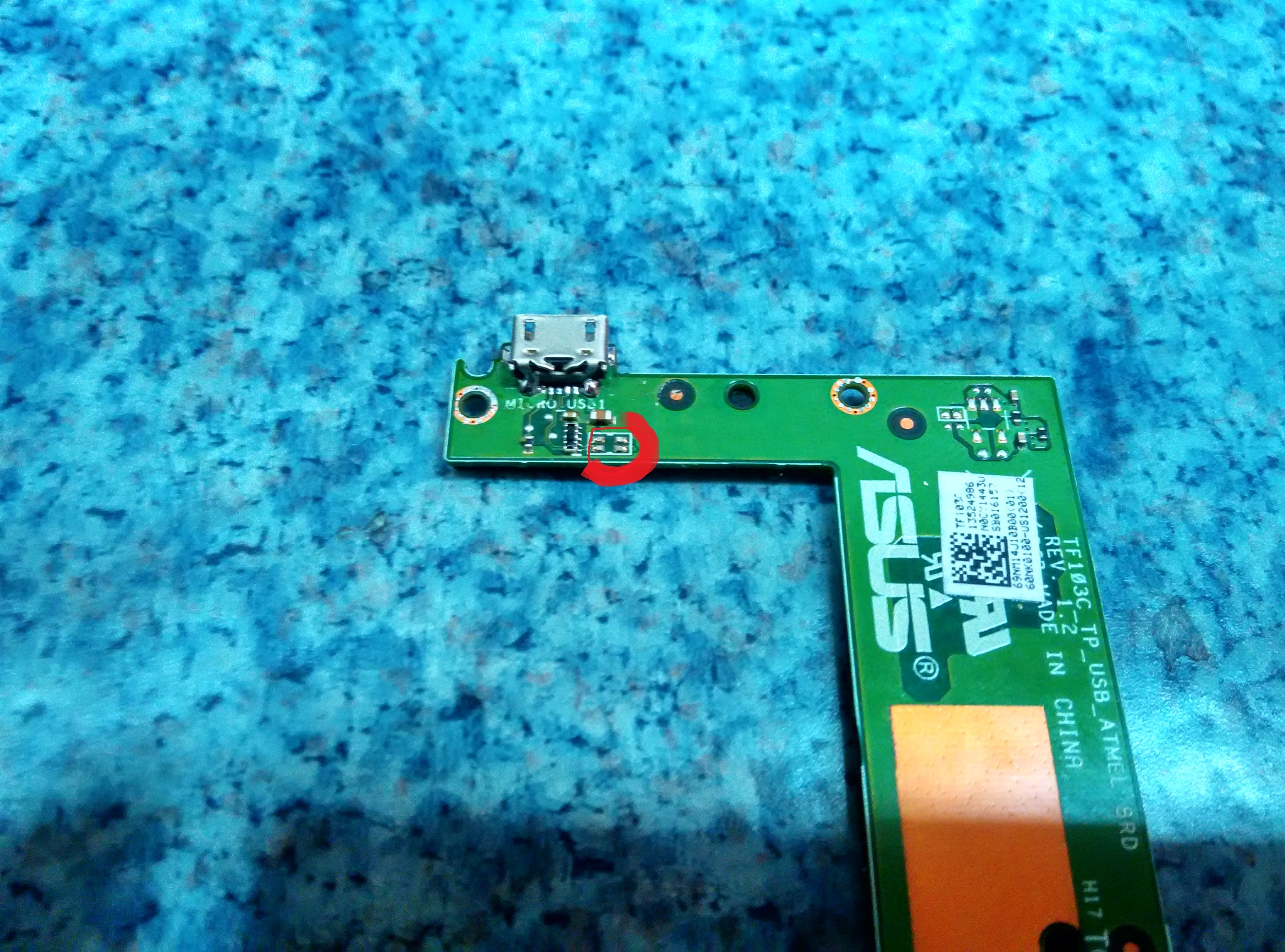

Tam powinna być podwójna cewka na szynach D- i D+. Na gnieździe nie ma zimnego lutu? Napięcie baterii podnosi się po wpięciu zasilacza (tj czy ładowanie w ogóle działa?)
Zasilacz oryginalny czy zamiennik jakiś? Nie pamiętam czy w tym asusie tak jest, ale w niektórych tabletach wymagana jest sprawna komunikacja szyn danych - w oryginlanym zasilaczu na D+ i D- są powstawiane rezystory (do masy i 5v)i elektronika w ten sposób "wykrywa" sprawny zasilacz. Samo 5V nie wystarczy.
Zasilacz oryginalny czy zamiennik jakiś? Nie pamiętam czy w tym asusie tak jest, ale w niektórych tabletach wymagana jest sprawna komunikacja szyn danych - w oryginlanym zasilaczu na D+ i D- są powstawiane rezystory (do masy i 5v)i elektronika w ten sposób "wykrywa" sprawny zasilacz. Samo 5V nie wystarczy.
Re: Asus Transformet TF103c brak elementu
by Google Adsense [BOT] • 4 April 2016, 09:22
