Re: DELL G15-5511 , MB LA-K455 prośba o pomiar
by Google Adsense [BOT] • 21 December 2023, 13:29

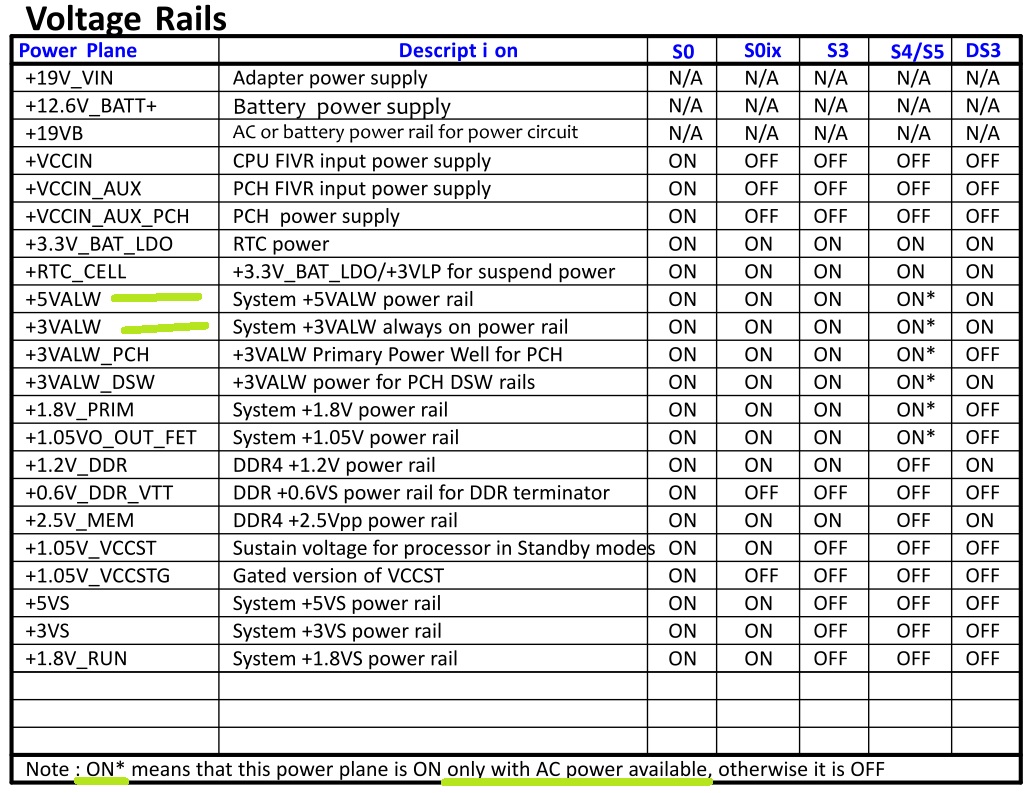

Genialnie , właśnie chodzi o gwiazdki. Bo u mnie gwiazdki są ON i prąd z LAB to 80mA.
Jak podgrzeję 51225 powyżej protekcji termicznej do spada na 7mA.
Jaki masz P/N dellowski dla K455 ?
Czy masz 1V8_PRIM?
Czy masz VCCIN_AUX ?
Ze schematu wynika (a z tabelki już nie) , że 1V8PRIM włącza VCCINAUX za pomocą swojego PG.
Czy stan na RZ38 masz H ?
Jak podgrzeję 51225 powyżej protekcji termicznej do spada na 7mA.
Jaki masz P/N dellowski dla K455 ?
Czy masz 1V8_PRIM?
Czy masz VCCIN_AUX ?
Ze schematu wynika (a z tabelki już nie) , że 1V8PRIM włącza VCCINAUX za pomocą swojego PG.
Czy stan na RZ38 masz H ?
Re: DELL G15-5511 , MB LA-K455 prośba o pomiar
by Google Adsense [BOT] • 9 January 2024, 10:31
