#1 Laptop AC adapter chip identification

by matic • 15 May 2021, 17:58
Hello!

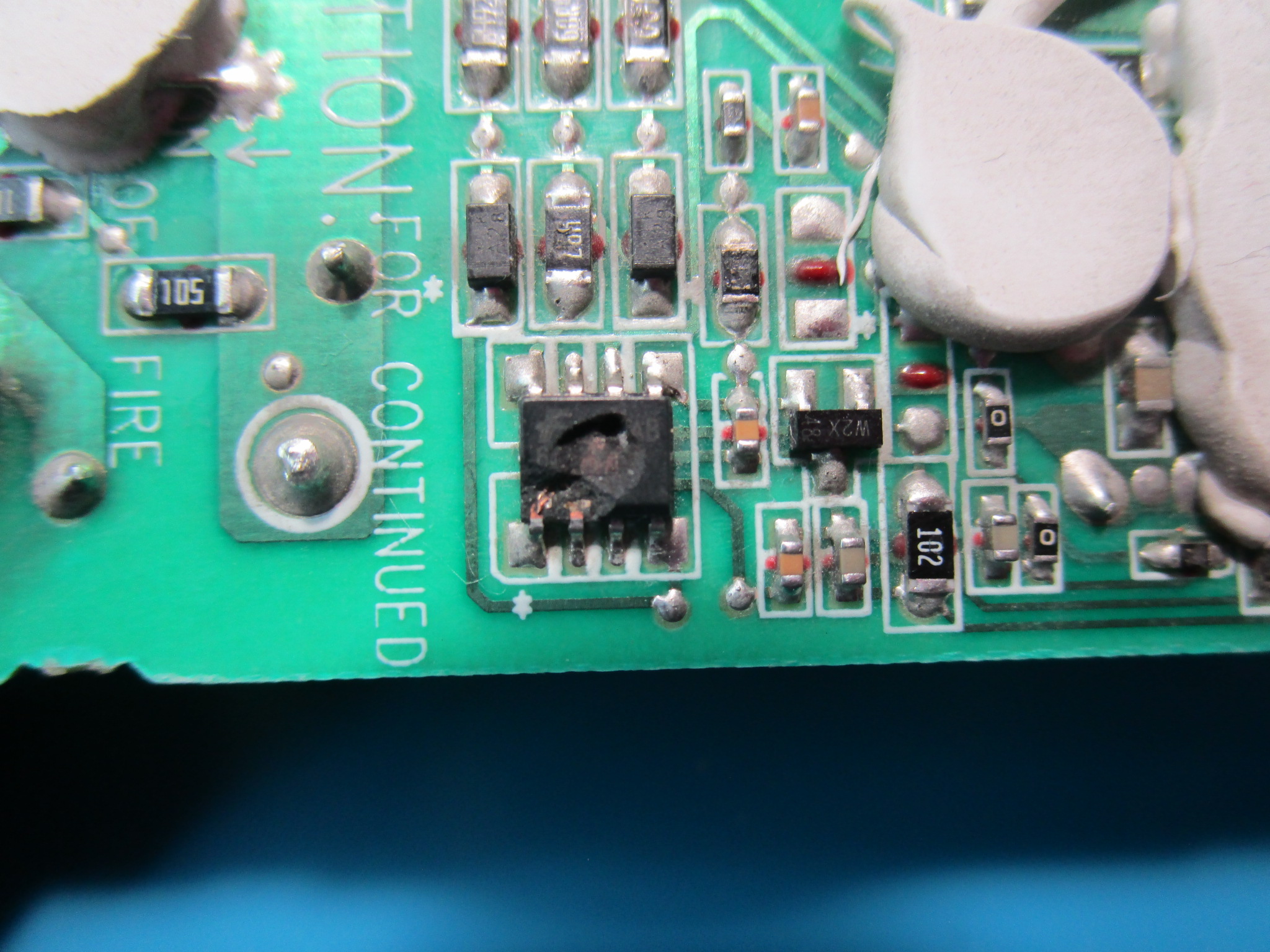

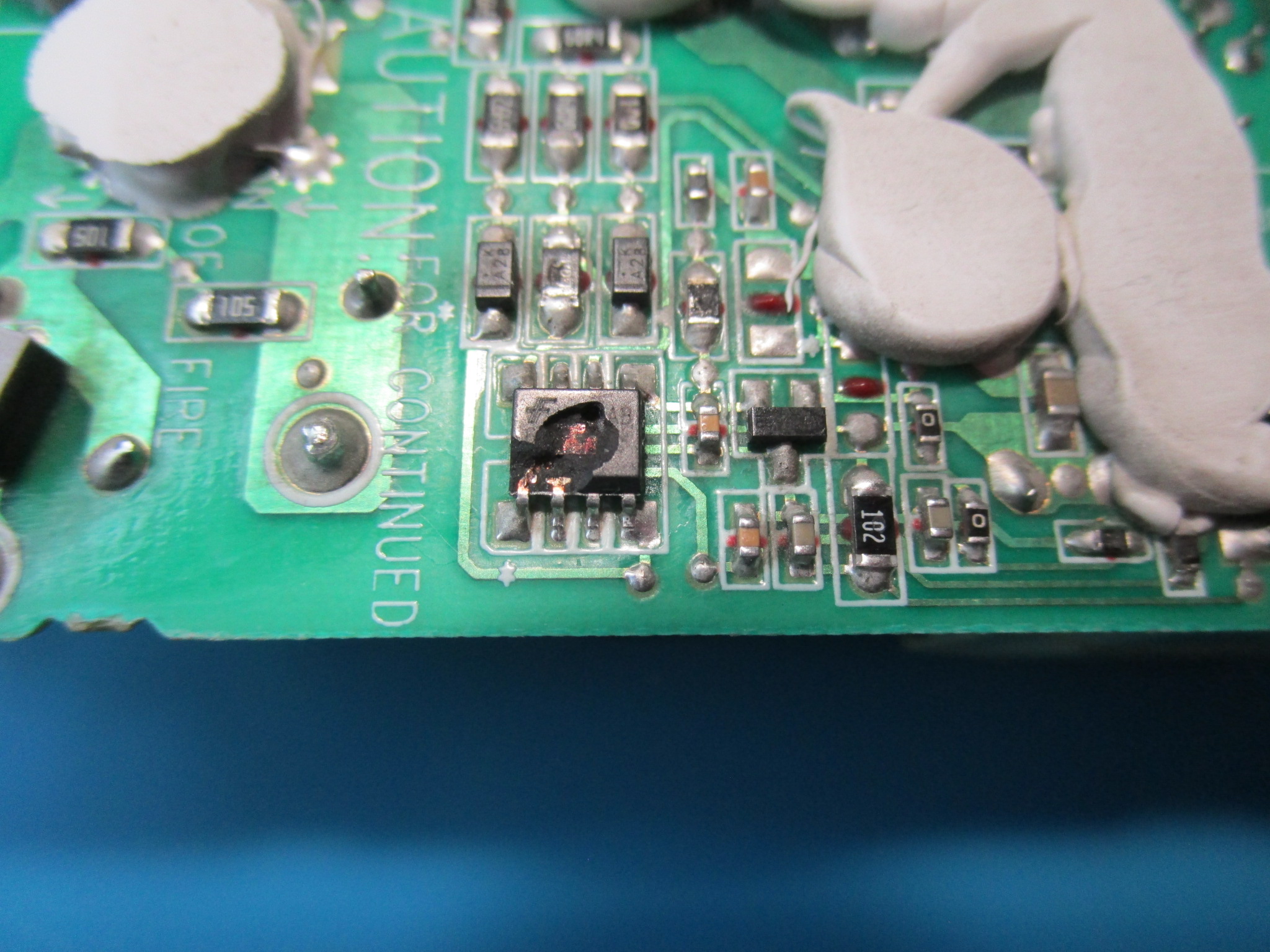

Please, identify the chip on the following pictures.

It is primary switching power supply controller chip.
It seems the chip manufacturer is a Fairchild Semiconductor.

Power supply model: Lenovo ADLX65NLC3A
PCB marking code: LiteOn PA1650-72I, Rev: A

Image Image

Re: Laptop AC adapter chip identification

by Google Adsense [BOT] • 15 May 2021, 17:58

#2 Re: Laptop AC adapter chip identification

by figofag • 15 May 2021, 18:22
Check FAN6754MR
Info from other forum
