#1 Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by mazee • 21 December 2023, 07:36

Dzień dobry!
Laptop Lenovo v330-14IKB po przyciśnięciu przycisku power, startuje, włącza
się ekran, pokazuje się logo Lenovo i nie idzie dalej.
Jestem w stanie zapalić caps locka(szybko przyciskając podczas
uruchamiania) ale już się nie da wyłączyć - po chwili barak reakcji na
klawisze, nie da się wejść do biosu.
Wyłączony laptop pobiera 20mA, widocznie ciepły układ ethernetu.

Przycisk "NOVO" włącza kompa identycznie jak power.
Bateria biosu była odłączana. Dysk odpięty, ram raczej ok.

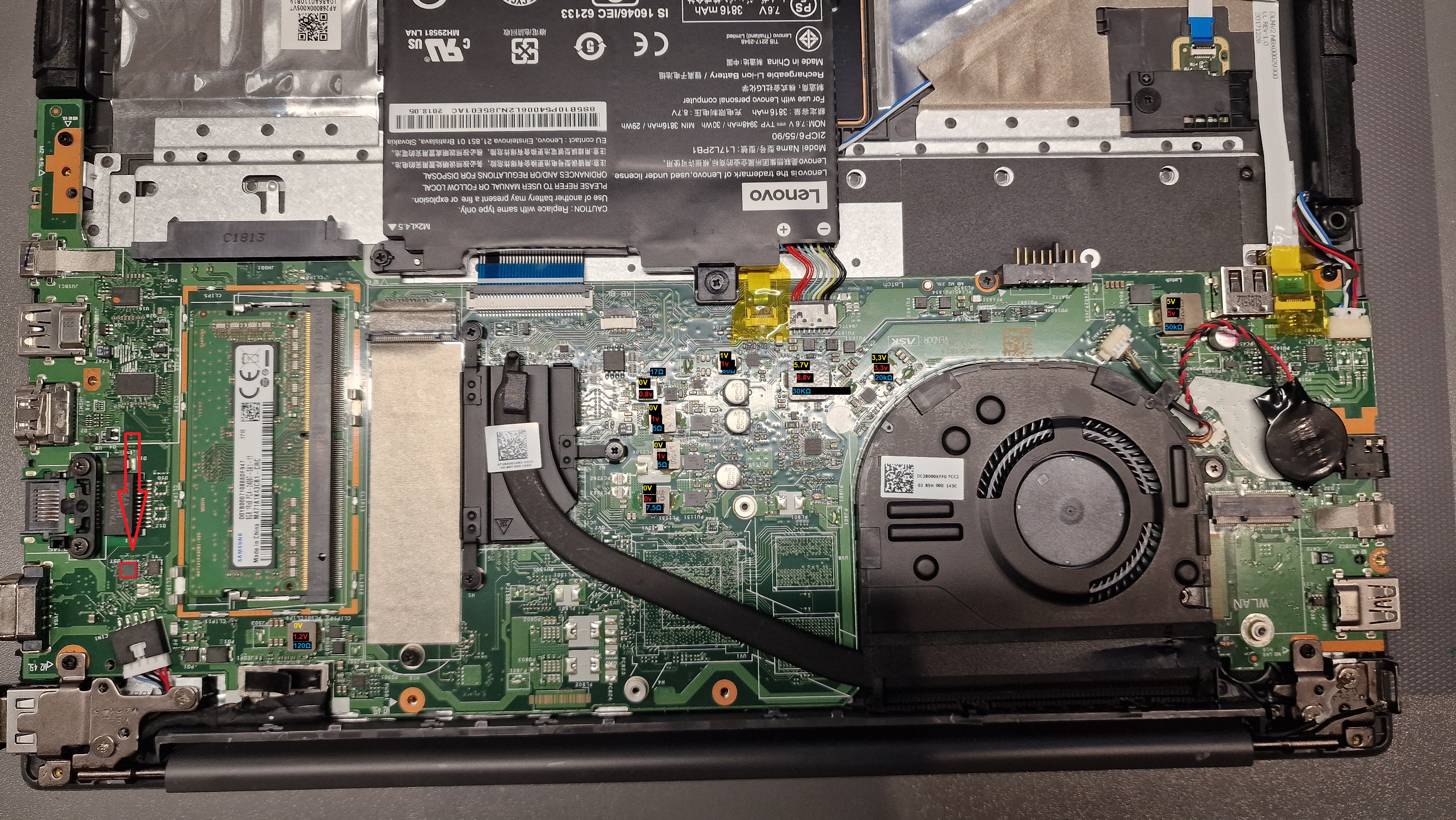

Pomiary na zdjęciu poniżej (na żółto napięcia przy wyłączonym laptopie, na czerwono przy włączonym):

Proszę Was o wskazanie kierunku.

Paweł

Nickname:

Google Adsense [BOT]

Rank:

BOT

Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by Google Adsense [BOT] • 21 December 2023, 07:36

Online

Nickname:

Machine

Rank:

VIP

Posts:

8293

Likes:

#2 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by Machine • 22 December 2023, 08:42

Try a USB keyboard if you can access the bios.

If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point

Nickname:

matic

Rank:

VIP

Posts:

15274

Likes:

139

#3 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by matic • 22 December 2023, 10:38

mazee wrote:Wyłączony laptop pobiera 20mA, widocznie ciepły układ ethernetu.

This chip is very likely damaged.
Remove it from the board and remeasure the power consumption of the board, when the machine is turned off. Also check if the machine still freeze on the Lenovo logo with this chip removed.

Nickname:

mazee

Rank:

Poziom 3

Posts:

#4 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by mazee • 22 December 2023, 23:59

matic wrote:This chip is very likely damaged.
Remove it from the board and remeasure the power consumption of the board, when the machine is turned off. Also check if the machine still freeze on the Lenovo logo with this chip removed.

I find out the connection to AVD33 for this chip and made a brake..
There is no short to GND on any pin of this chip.
Drain is now 10mA as off but same situation after power on with Lenovo logo.

Nickname:

Vogelek23

Rank:

Administrator

Posts:

16525

Likes:

265

#5 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by Vogelek23 • 23 December 2023, 07:10

Nie rozumiem, dlaczego robisz coś po swojemu, zamiast stosować się ściśle do zaleceń? W ten sposób daleko nie zajdziesz. Uszkodzony układ LAN - nawet pozbawiony zasilania 3,3V - może blokować PCH w procesorze na liniach PCIE. Dlatego kol. matic zalecił wylutowanie kontrolera, a nie tylko odcięcie jego linii zasilania.

ELVIKOM LAB Ltd - Apple Repairs & PCB Design - Free Quotes! https://www.elvikom.co.uk
Jeśli skorzystałeś z mojej pomocy na Forum, możesz w ramach podziękowania wspomóc jego rozwój. Kliknij tutaj, aby dowiedzieć się więcej.

Nickname:

mazee

Rank:

Poziom 3

Posts:

#6 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by mazee • 25 December 2023, 00:07

matic wrote:
mazee wrote:Wyłączony laptop pobiera 20mA, widocznie ciepły układ ethernetu.
This chip is very likely damaged.
Remove it from the board and remeasure the power consumption of the board, when the machine is turned off. Also check if the machine still freeze on the Lenovo logo with this chip removed.

I finally removed the LAN chip, Unfortunately nothing changed..

Nickname:

matic

Rank:

VIP

Posts:

15274

Likes:

139

#7 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by matic • 25 December 2023, 13:09

How about that?

matic wrote:Remove it from the board and remeasure the power consumption of the board, when the machine is turned off.

Nickname:

mazee

Rank:

Poziom 3

Posts:

#8 Re: Lenovo v330-14ikb; DLME1/V2 LA-F481P; wyświetla się logo Lenovo i stoi

by mazee • 8 January 2024, 01:43

matic wrote:How about that?
matic wrote:Remove it from the board and remeasure the power consumption of the board, when the machine is turned off.

As I wrote ealier :
I finally removed the LAN chip, Unfortunately nothing changed..

But.. I reprogramed the BIOS and laptop started!

Thanks All for Your effrot.

Vogelek23 wrote:Nie rozumiem, dlaczego robisz coś po swojemu, zamiast stosować się ściśle do zaleceń? W ten sposób daleko nie zajdziesz.

Robie coś po swojemu czy kombinuję bo myślę.

Pozdrawiam!
