#1 Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 22 March 2024, 10:07
Witam Kolegów
Medion Akoya P6634 MB: pegatron a17
Charger ISL88731C
Laptop bez baterii uruchamia się normalnie, z baterią nie działa w ogóle ale ją ładuje co widać po poborze prądu i diodzie ładowania.
Wymieniłem charger, Q8803, Q8804
mam trzy różne baterie i sytuacja jest taka sama na wszystkich.
Proszę o pomoc w nakierowaniu na problem.

Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by Google Adsense [BOT] • 22 March 2024, 10:07

#2 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 25 March 2024, 09:38
Hello!

Measure the voltages to ground on all pins of battery connector with and without battery connected (power supply connected all the time).

#3 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 25 March 2024, 10:01
Dziękuję matic za zainteresowanie

Bateria \bez baterii zasilacz podłączony w obu przypadkach:

3 - 0,3V \ 0,3V
4 - 3,28V \ 3,20V - 3,3V pływa
5 - 3,28V \ 3,20V - 3,3V pływa
6 - 0V\0V
7 - 0V\0V
8 - 16,1V \16,8V
9- 16,1V \16,8V
Z baterią brak napięć na cewkach 3,3V 5V

#4 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 25 March 2024, 11:24
- Measure the resistance to ground on pin 3 of battery connector (with the power supply and battery disconnected of course).
- Measure the voltages to ground on both pins of resistor R3004 with the power supply connected only (without battery).

#5 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 25 March 2024, 11:59
Pin 3 Złącza baterii 50kOhm
R3004 - 3,29V po obu stronach

#6 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 25 March 2024, 14:10
Please, post a clear picture of marked area of the board.

#7 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 25 March 2024, 14:36

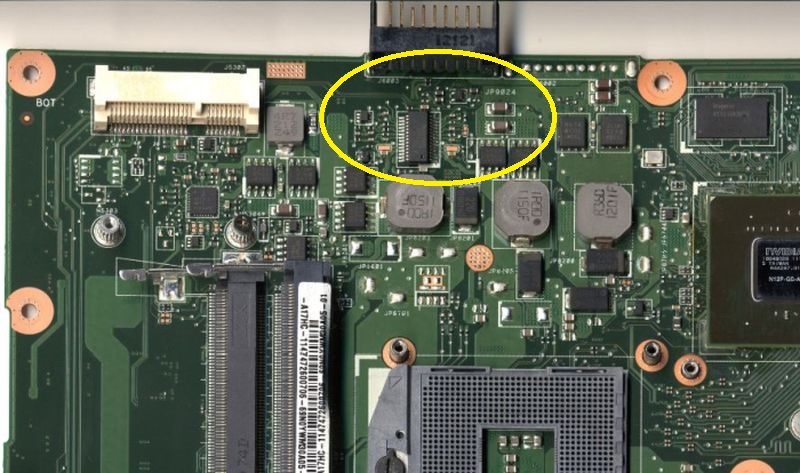

#8 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 25 March 2024, 18:21
Measure the voltages to ground on both pins of coil L6004 with the power supply connected only (without battery).

#9 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 26 March 2024, 08:51
3,3V z obu stron
Jest dostępny schemat do tej platformy? mam tylko boardview

#10 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 26 March 2024, 09:58
psikus123 wrote:3,3V z obu stron
The copper path on PCB between pin 1 of coil L6004 and pin 3 of battery connector is damaged. Restore the connection with a thin jump wire.

psikus123 wrote:Jest dostępny schemat do tej platformy?
Currently unavailable.

#11 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 26 March 2024, 10:28
Połączenie jest, w tej chwili na pin 3 złącza baterii bez baterii jest 3,3V z baterią 0,3V
Staram się bardzo dokładnie pomiary robić

#12 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 26 March 2024, 10:50
Measure the voltage to ground on pin 96 of KBC chip with and without battery connected (power supply connected all the time).

#13 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by psikus123 • 26 March 2024, 11:05
Pin 96 KBC Bez baterii 3,3V z baterią 0,3V
Dodam, że z podłączoną baterią podepnę zasilacz na kilka sekund zapala się power, następnie gaśnie i już laptop się nie uruchomi przyciskiem.

#14 Re: Medion Akoya P6634 MB pegatron a17 Nie uruchamia się z baterią i na baterii

by matic • 31 March 2024, 11:49
Measure the voltages to ground on coils L8100, L8101, L8802 and resistor R8800 in the following cases:
a) Power supply + battery connected.
b) Battery connected only (without the power supply).
c) Power supply connected only (without the battery).
