#1 NTT 707G spalony element

by viperr2 • 8 September 2015, 13:12
Witam naprawiany sprzęt to tablet NTT model 707G płyta o oznaczeniu: ELINK_MD706_V2 20130712. Tablet nie ładuje baterii, na złączu baterii po podpięciu zasilacza napięcie wynosi 2,7V i nie chce rosnąć. Po podpięciu zasilacza serwisowego o odpowiednim napięciu 3,7V tablet normalnie się uruchamia.

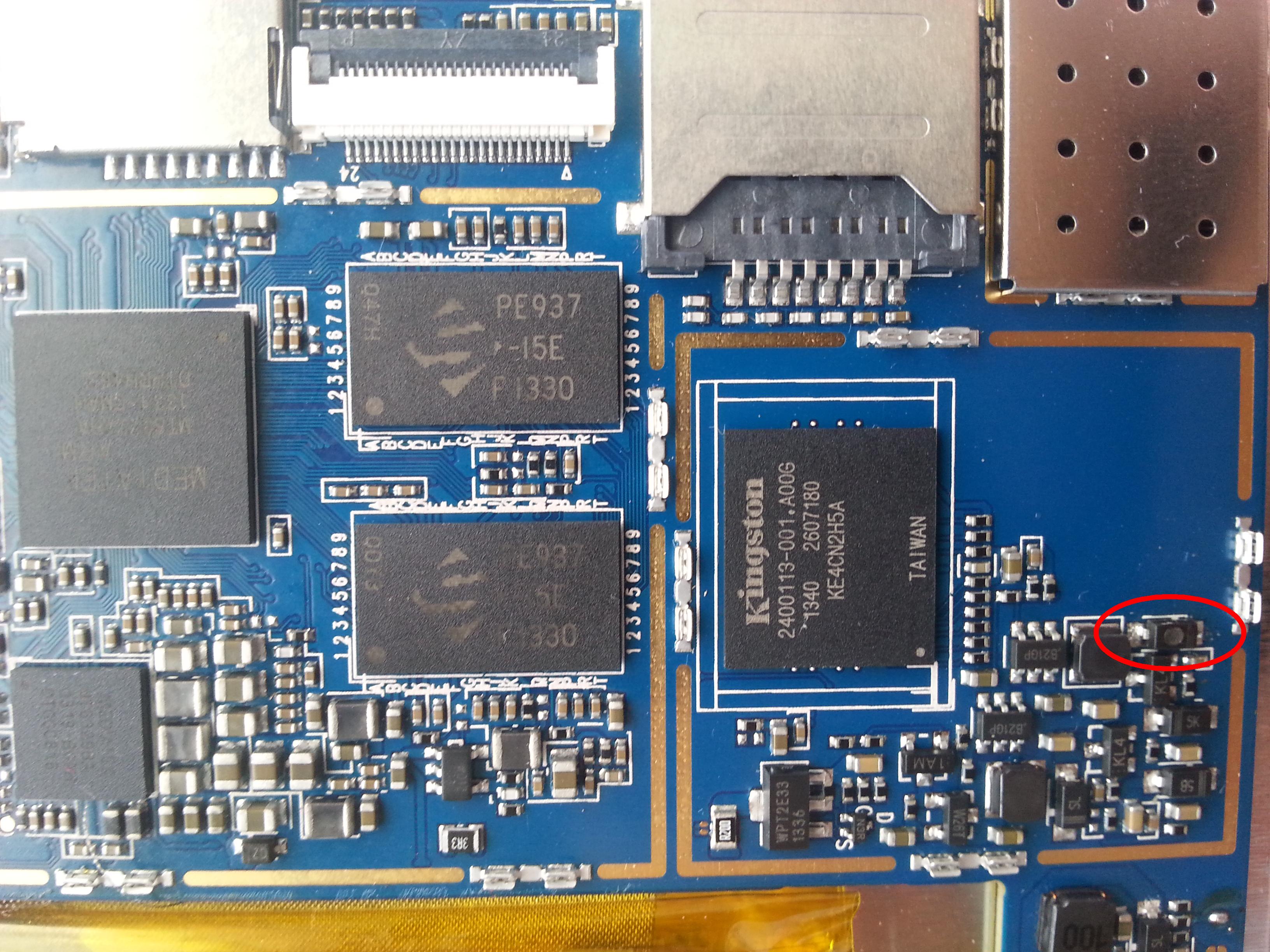

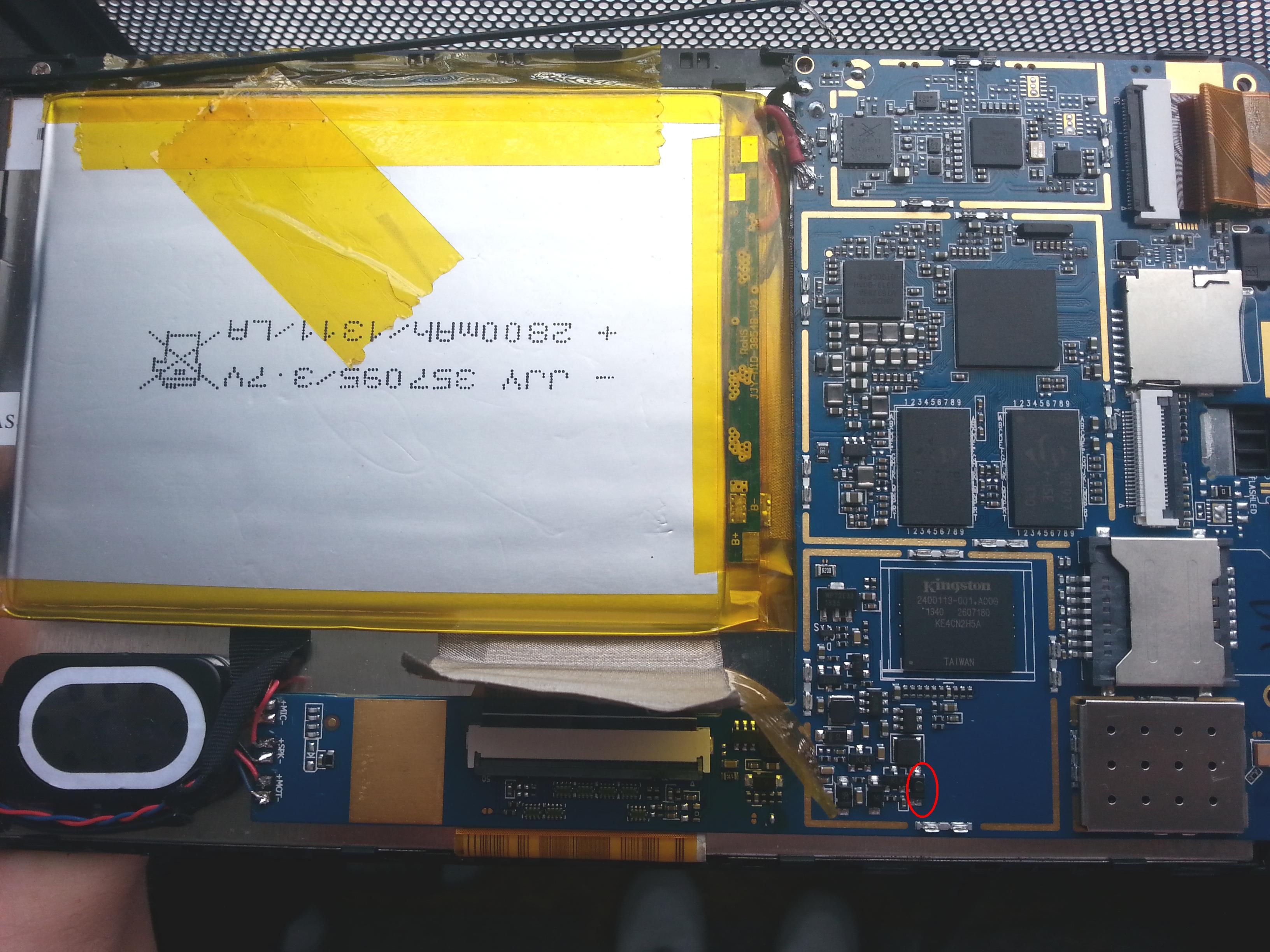

Po oględzinach płyty znalazłem uszkodzony element, który oznaczam na dołączonych zdjęciach. Prosiłbym o ewentualną pomoc w diagnozie uszkodzonego elementu.
