Re: Schemat ASUS UX550V MB UX550VD
przez Google Adsense [BOT] • 13 grudnia 2020, 07:09
BIOS + KBC dump
Model: Asus ZenBook Pro UX550V

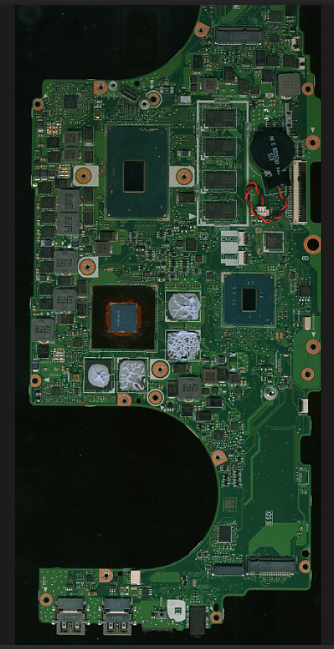

Motherboard: ASUSTeK UX550VD, Rev.: 2.0
BIOS type: UX550VE
BIOS version: 307
CPU: Intel Core i7-7700HQ (SR32Q)
GPU: Nvidia GeForce GTX1050TI (N17P-G1-A1)
PCH: Intel GL82HM175 (SR30W)
KBC: ITE IT8995VG-128 - DXO (128kB = 1Mbit)
BIOS: Macronix MX25L6473FM2I (64Mbit = 8MB)
Notes1: It is usually need to transfer the ME-region from old to the new BIOS, otherwise there is no picture on the screen. The ME-region is located at address "1000", "1BF000".
Notes2: Serial number is replaced with "SSSSSSSSSSSSSSS". It is located at 18 different locations in the BIOS, namely: "225490", "24000C", "240118", "240654", "240760", "240DA8", "240EB4", "240FC0", "2410CC", "2411D8", "2412E4", "2414FC", "241820", "24192C", "241C50", "241D5C", "242080", "24218C".
Notes3: Windows key is replaced with "WWWWW-WWWWW-WWWWW-WWWWW-WWWWW". It is located at 2 different locations in the BIOS, namely: "2255B4", "241404".

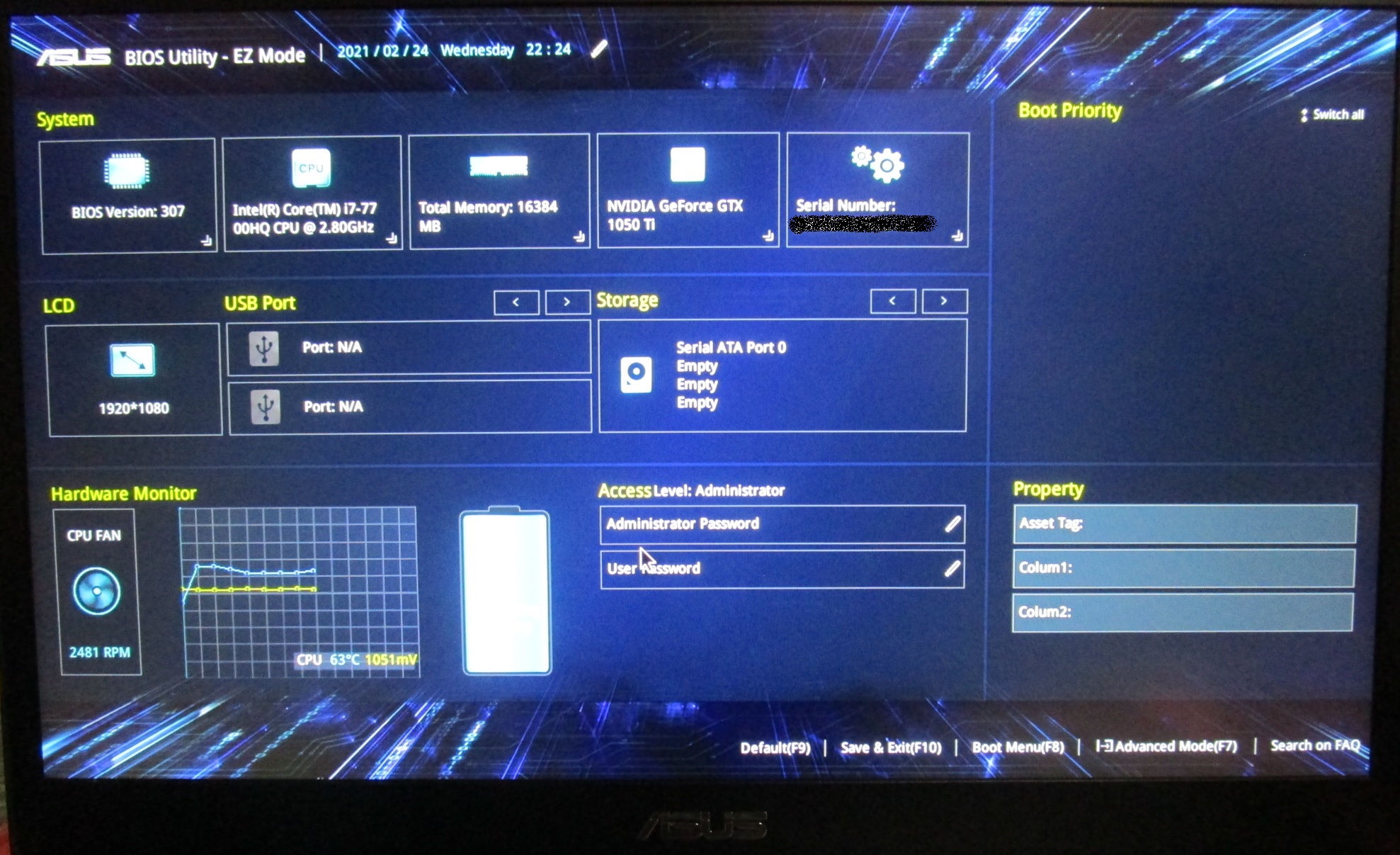

AUTOWERYFIKACJA
Model: Asus ZenBook Pro UX550V
Motherboard: ASUSTeK UX550VD, Rev.: 2.0
BIOS type: UX550VE
BIOS version: 307
CPU: Intel Core i7-7700HQ (SR32Q)
GPU: Nvidia GeForce GTX1050TI (N17P-G1-A1)
PCH: Intel GL82HM175 (SR30W)
KBC: ITE IT8995VG-128 - DXO (128kB = 1Mbit)
BIOS: Macronix MX25L6473FM2I (64Mbit = 8MB)
Notes1: It is usually need to transfer the ME-region from old to the new BIOS, otherwise there is no picture on the screen. The ME-region is located at address "1000", "1BF000".
Notes2: Serial number is replaced with "SSSSSSSSSSSSSSS". It is located at 18 different locations in the BIOS, namely: "225490", "24000C", "240118", "240654", "240760", "240DA8", "240EB4", "240FC0", "2410CC", "2411D8", "2412E4", "2414FC", "241820", "24192C", "241C50", "241D5C", "242080", "24218C".
Notes3: Windows key is replaced with "WWWWW-WWWWW-WWWWW-WWWWW-WWWWW". It is located at 2 different locations in the BIOS, namely: "2255B4", "241404".
AUTOWERYFIKACJA
Re: Schemat ASUS UX550V MB UX550VD
przez Google Adsense [BOT] • 28 lipca 2021, 20:32
