#1 Loytec L-IOB controller chip identification

by matic • 14 August 2021, 16:23
Hello!

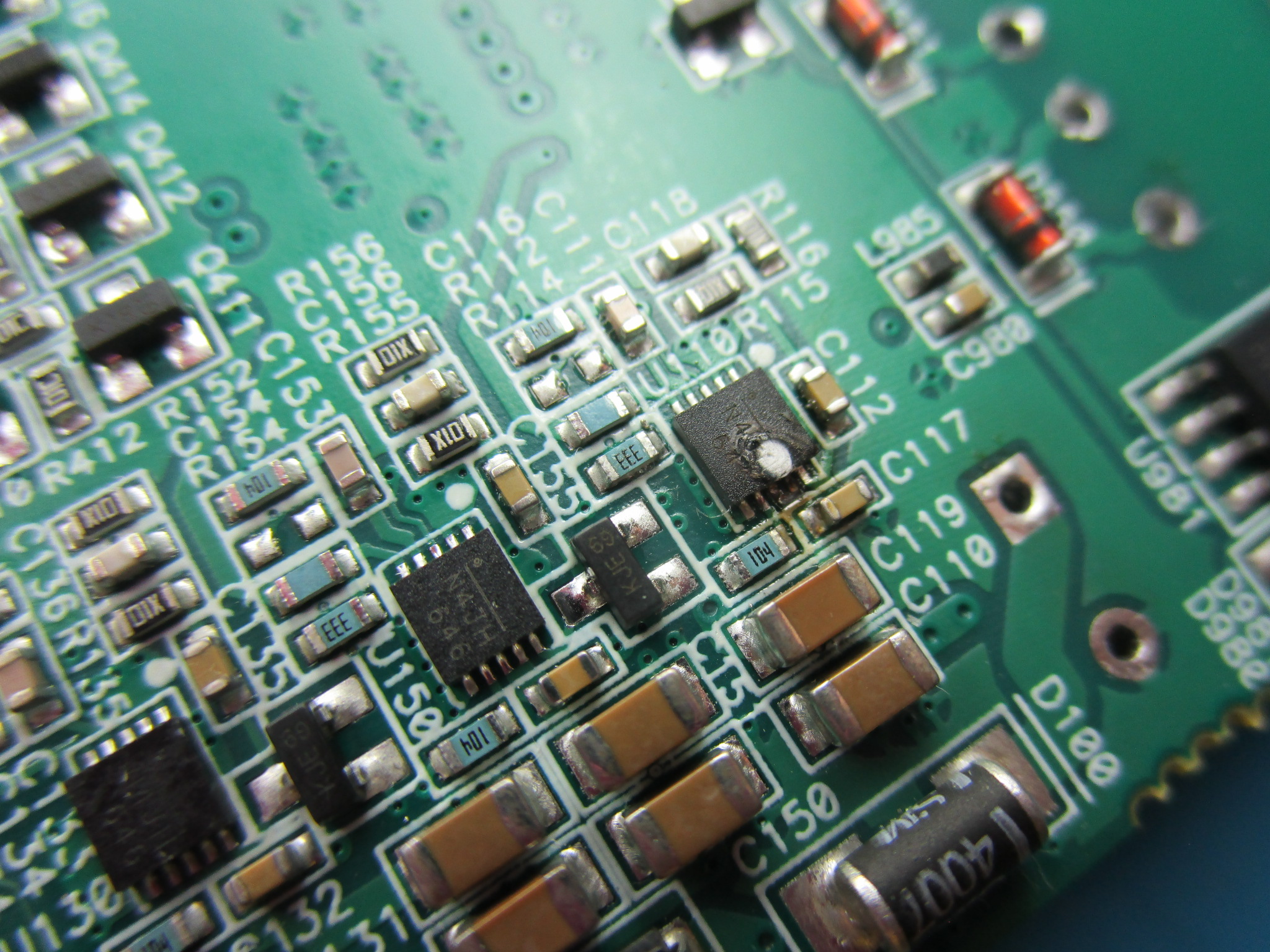

Please, identify the burned chip U110 in the picture below (chip U150 near it seems the same).

It is a DC/DC power supply controller chip.
The chip manufacturer is probably a Monolithic power systems (MPS).
Package type: TQFN-10 (3x3mm)


Re: Loytec L-IOB controller chip identification

by Google Adsense [BOT] • 14 August 2021, 16:23

#2 Re: Loytec L-IOB controller chip identification  [SOLVED] 

by gofer • 14 August 2021, 18:40
MP4459DQT TQFN10 3x3mm
Datasheet:



You have to be logged in to view the files attached to this post.

#3 Re: Loytec L-IOB controller chip identification

by matic • 8 November 2021, 21:11

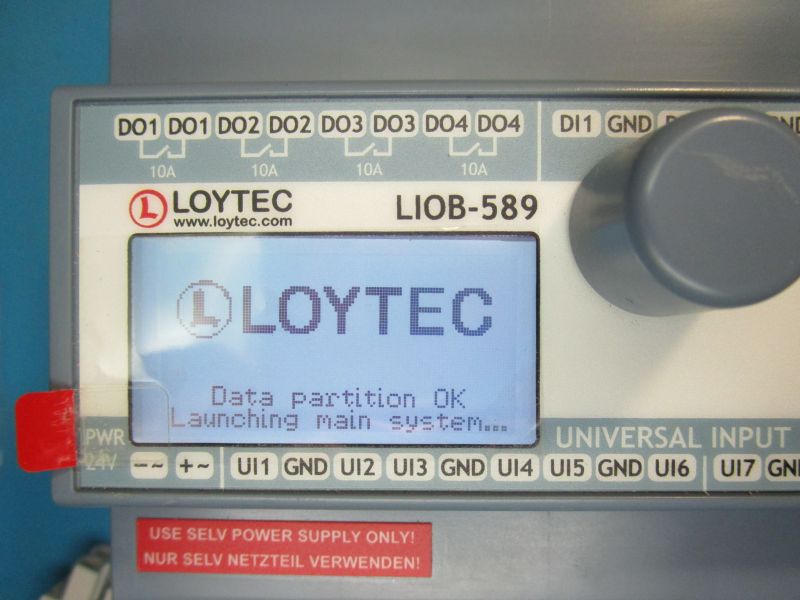

Chip replaced with MP4459DQT and the device came to life again.

Thanks, gofer :)
