#1 Zasilacz bequiet BQ SU7-400W nie startuje

by Gurek00 • 23 November 2022, 13:06

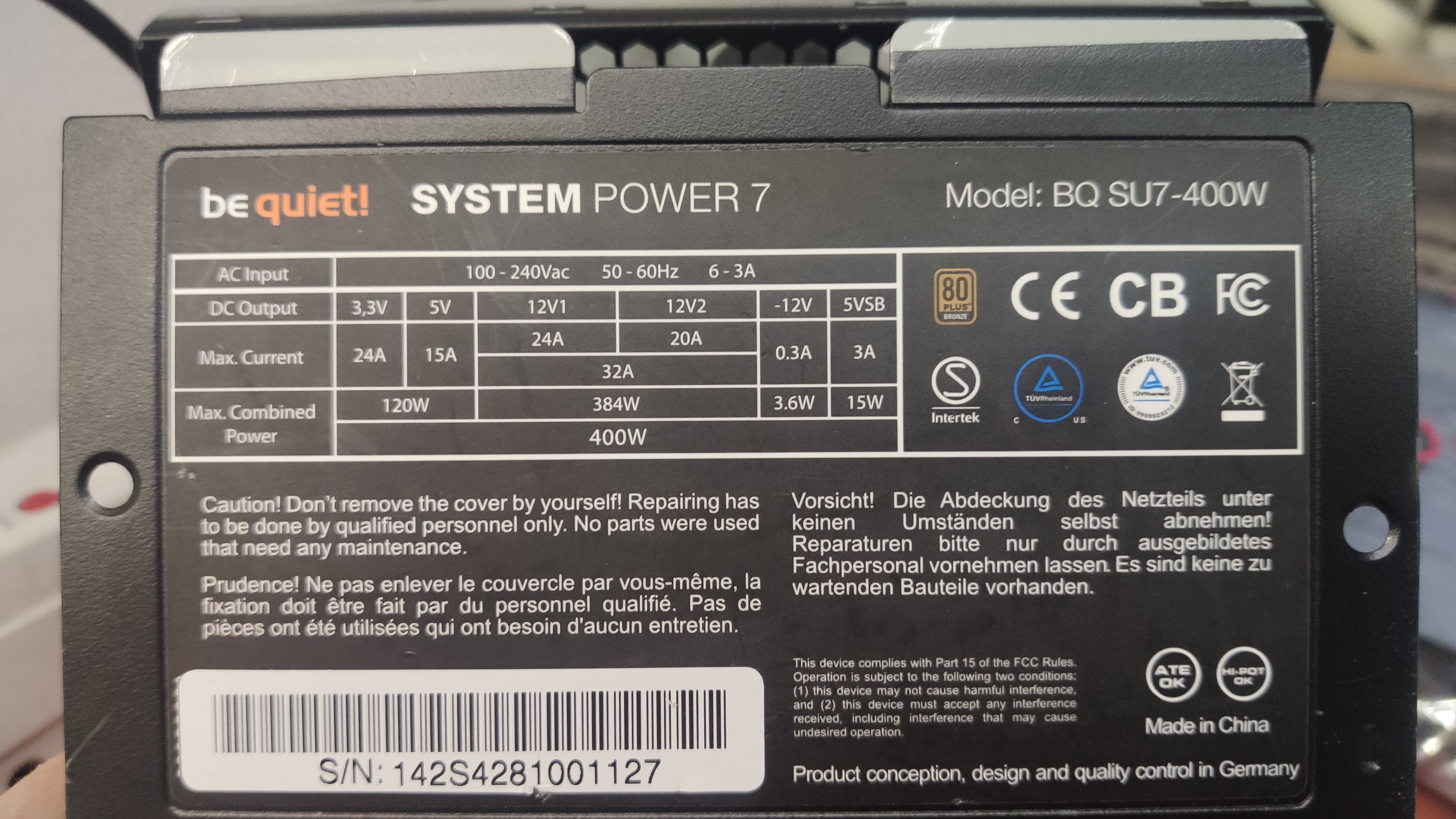

Witam,
mam w naprawie zasilacz jak w temacie. Sprzęt nie startuje po podłączeni zasilania(sprawdzam na testerze do zasilaczy). Są napięcia:
PS_ON 2,5V
+5VSB 5V

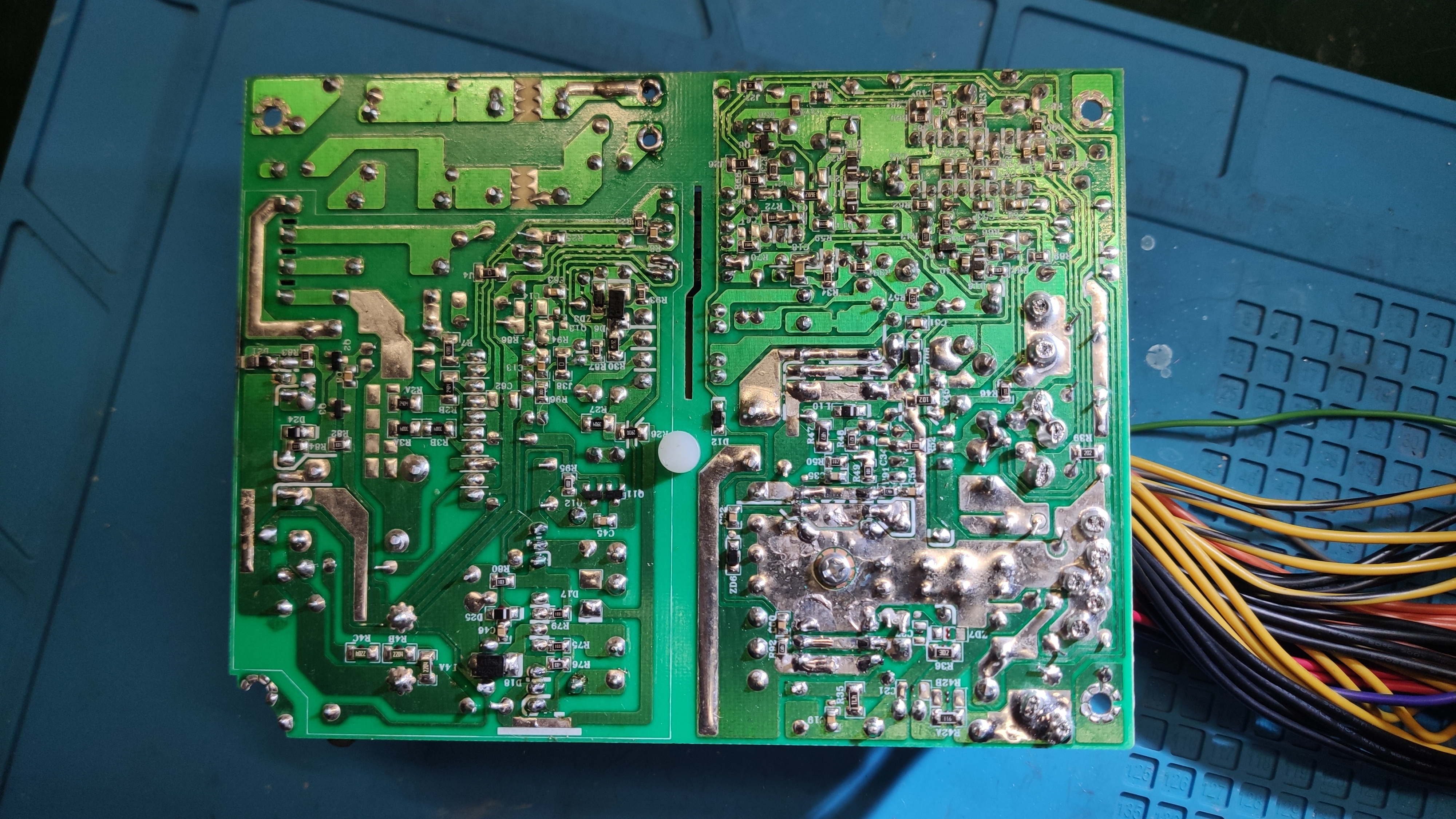

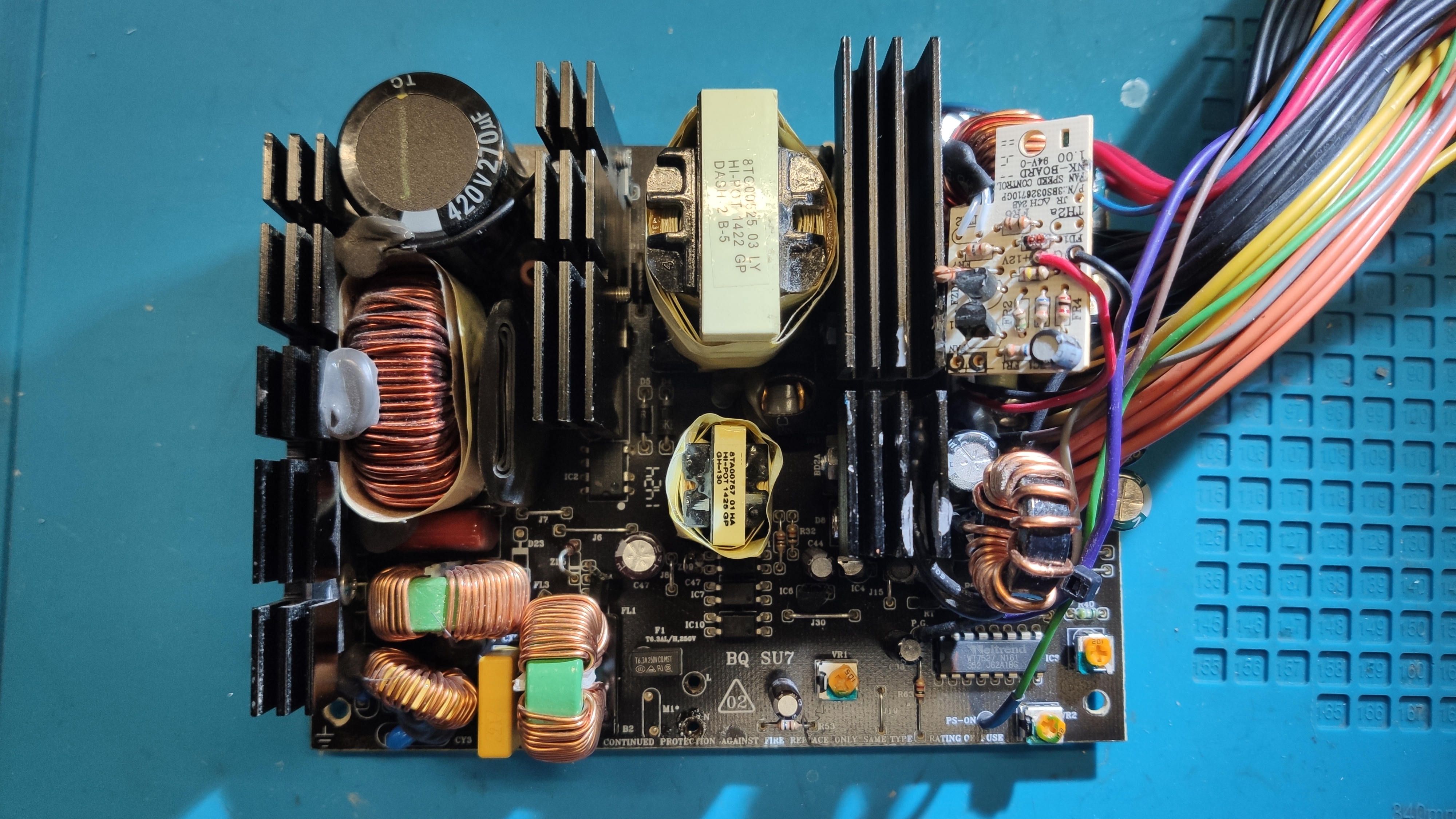

Sprawdziłem wszystkie tranzystory i diody w poszukiwaniu zwarcia ale nic nie znalazłem. Pomierzyłem kondensatory po stronie pierwotnej i też są ok. Brak zwarć na liniach 3,5 i12V. Sprawdzałem też pod termowizją i nie zauważyłem nic niepokojącego.
Proszę o pomoc bo już nie mam pomysłów.




Re: Zasilacz bequiet BQ SU7-400W nie startuje

by Google Adsense [BOT] • 23 November 2022, 13:06

#2 Re: Zasilacz bequiet BQ SU7-400W nie startuje  [SOLVED] 

by matic • 23 November 2022, 20:04
Hello!

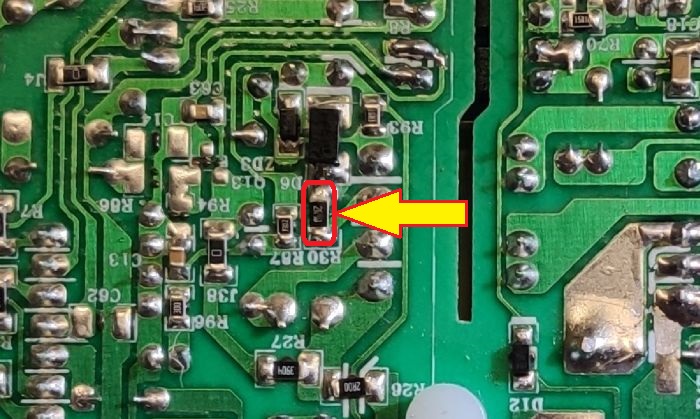

The resistor R30 seems suspicious. Check, if it's not damaged.

#3 Re: Zasilacz bequiet BQ SU7-400W nie startuje

by Gurek00 • 29 November 2022, 16:36
Rezystor okazał się uszkodzony. Po wymianie na sprawny wszystko działa. Sprawdzałem zasilacz pod mikroskopem go przeoczyłem.
Wielkie dzięki!!!

Re: Zasilacz bequiet BQ SU7-400W nie startuje

by Google Adsense [BOT] • 29 November 2022, 16:36
