#1 Legion 5 15ARH05H płyta NM-D281 Brak +3Vs +5VS oraz SUSP# pętla

by ukpicasso • 24 February 2024, 10:02
Pętla przy uruchomieniu Tutaj widać jak się zachowuje.
https://youtube.com/shorts/duwQGyFZxgE? ... CsR2fvRHZu
Brak obrazu, brak podśw. klawiatury, wiatraki nie ruszają.
Historia:
Laptop włączał się raz na 10 a potem przestał całkiem.

Co zmierzyłem do tej pory:
Brak sygnału SUSP# na pinie 124 kbc (UE1)
Brak 5VS i 3VS na UX2. Brak enablerow EN1 I EN2 (wynik braku SUSP#)
Rezystancja do GND UX2
pin1-2 (3.7k)
6-7 (14.1k)
8-9 (94k)
13-14 (6.6k)
5 (88k)
Na PU2001 RT6585CGQW jest 5V na pin 13 (LDO5) i 3V na pin 3 (LDO3)
SUSP jest na drenie QX6.
Napięcie baterii bios 3.1V, odpinana bateria.

Skończyły mi się pomysły. Dlaczego na kbc nie ma sygnału SUSP#??

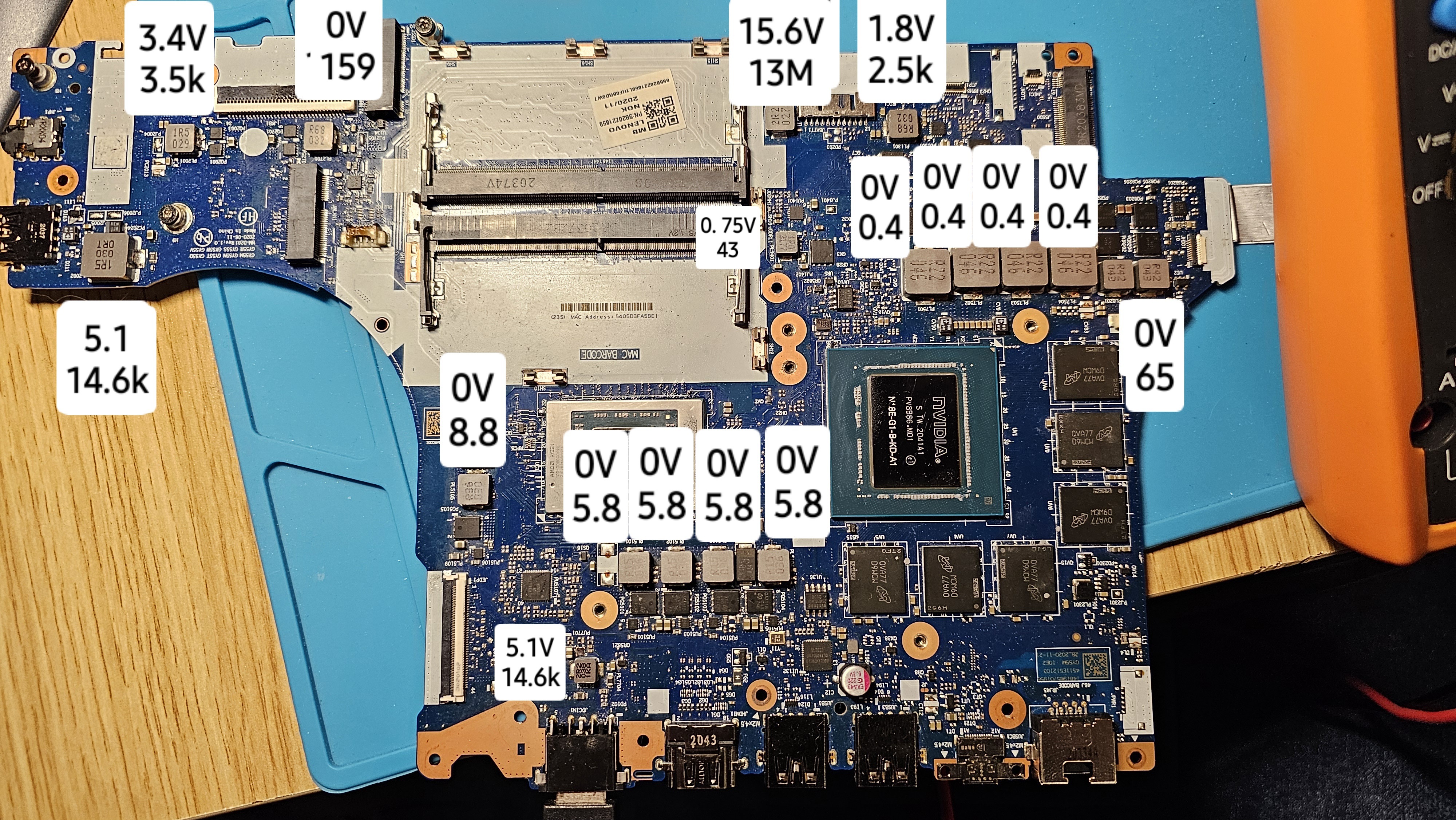

Cewki pomiary napięcia przy włączonym i rezystancji przy wyłączonym

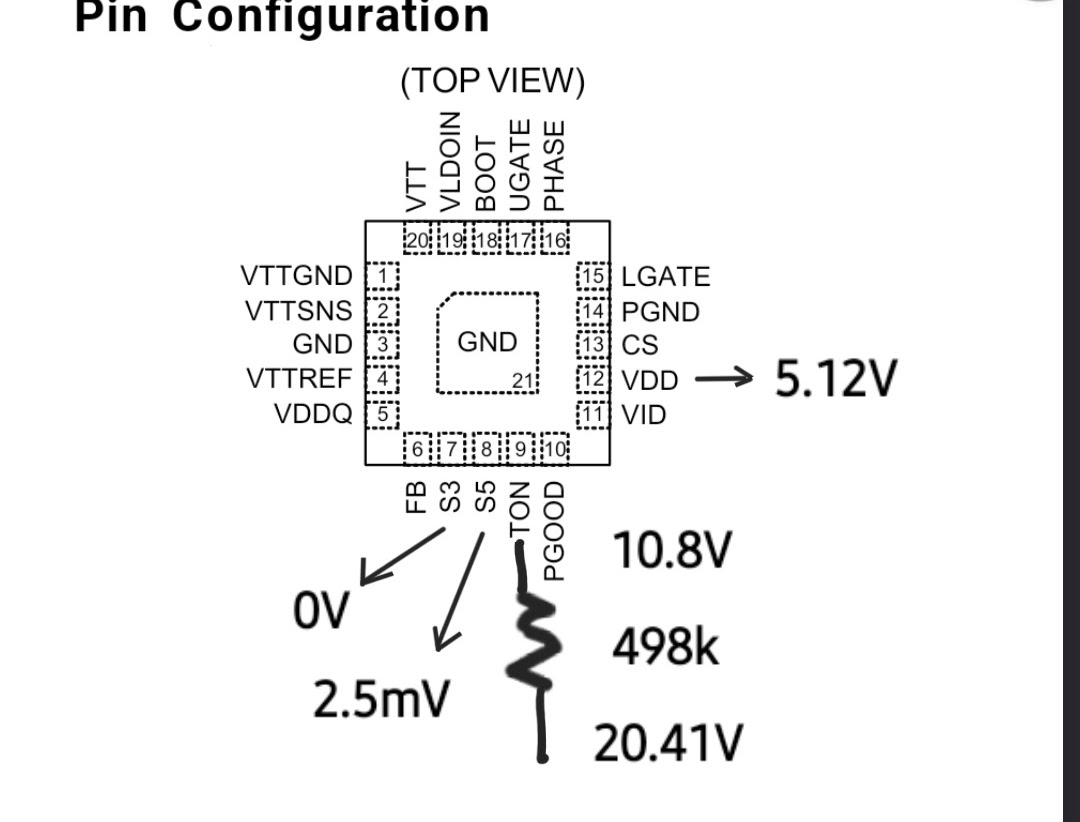

Brak S3 S5 na PU2701

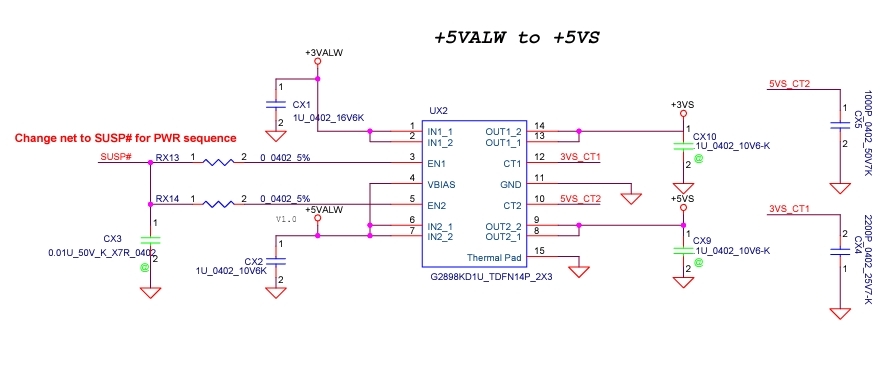

Tu schemat dla UX2, bez SUSP# nie generuje si3lę 3VS i 5VS

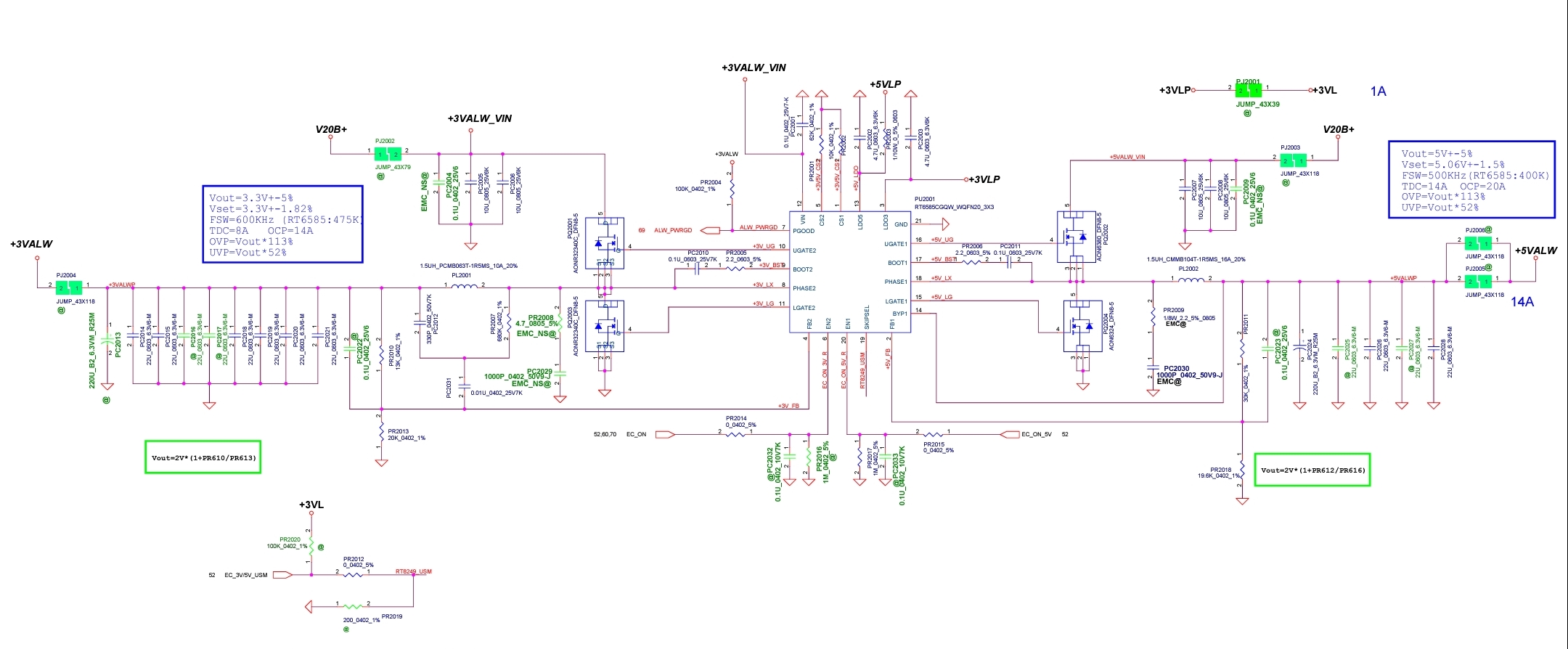

PU2001

Re: Legion 5 15ARH05H płyta NM-D281 Brak +3Vs +5VS oraz SUSP# pętla

by Google Adsense [BOT] • 24 February 2024, 10:02

#2 Re: Legion 5 15ARH05H płyta NM-D281 Brak +3Vs +5VS oraz SUSP# pętla

by matic • 26 February 2024, 08:17
ukpicasso wrote:Napięcie baterii bios 3.1V, odpinana bateria.
Hello!
The BIOS battery does not exist. You probably mean the RTC (CMOS) battery. The voltage on this battery should be measured when it's connected to the board.
If the voltage on this battery is fine, replace the BIOS chip and flash it with old (original) dump. If it doesn't change anything, reflash the new BIOS chip with another dump.

Re: Legion 5 15ARH05H płyta NM-D281 Brak +3Vs +5VS oraz SUSP# pętla

by Google Adsense [BOT] • 26 February 2024, 08:17
