#1 Panasonic SA-BTT405 - nie czyta płyt

by lock99 • 26 March 2024, 10:30
Cześć
Proszę o pomoc w naprawie kina domowego Panasonic SA-BTT405.
Urządzenie po włożeniu płyty nawet jej nie rozkręca, tylko lekko przekręca.

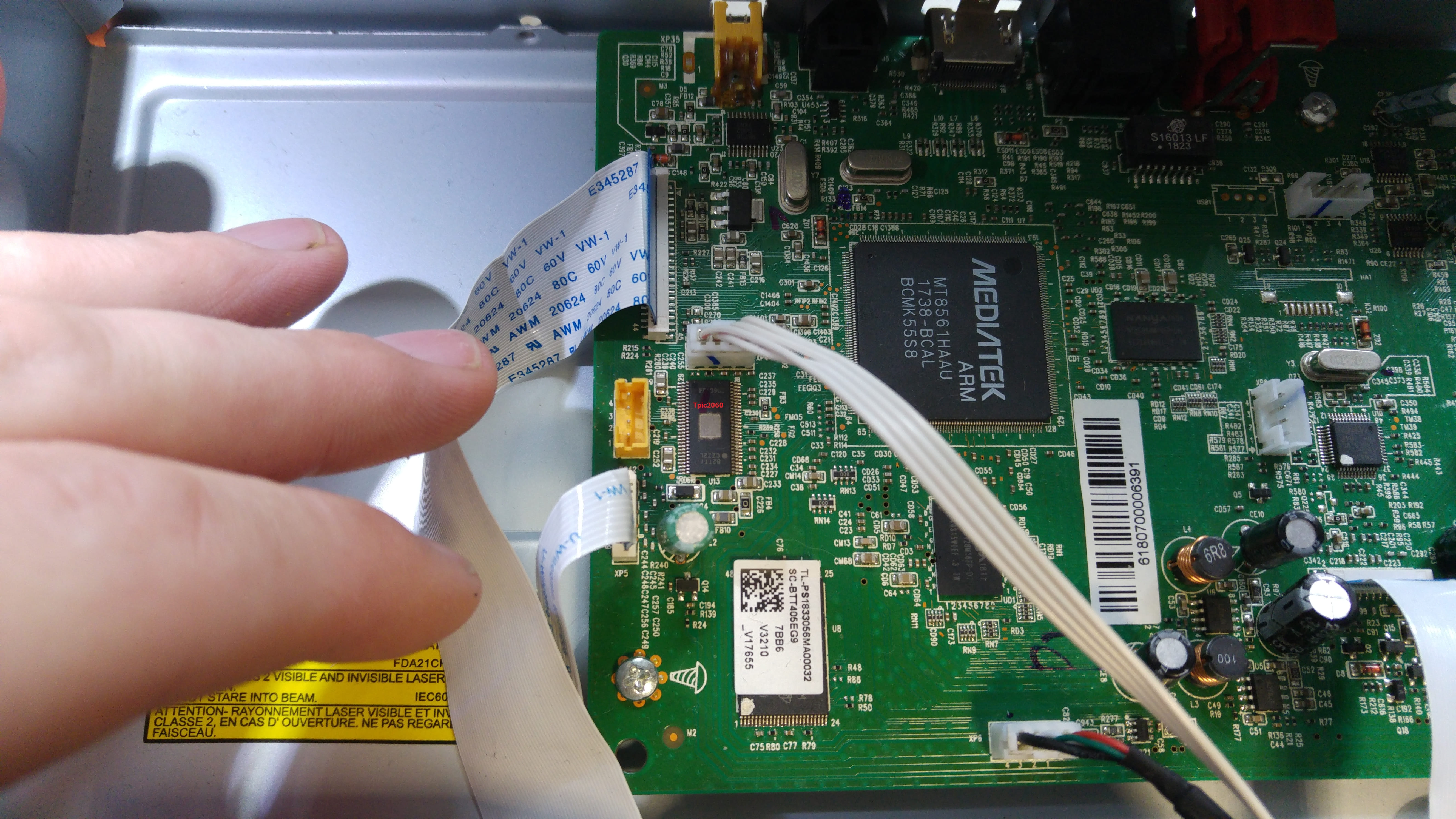

Zrobiłem filmy, jak to wygląda. Pierwsze pomiary zaznaczyłem na zdjęciu.
Czy ktoś miał podobny przypadek i może podpowiedzieć, co dalej sprawdzić?
Gniazdo nr.2
1-0V w momencie wsuwania tacki pojawia się na chwile 4V
2-0V w momencie wysuwana tacki pojawia sie na chwile 4V
3-0V
4-0V w momencie wysuwania i wsuwania tacki pojawia się 3.3V
Na pierwszym filmie tego nie widać ale laser kilka razy miga
20240216_121903.mp4

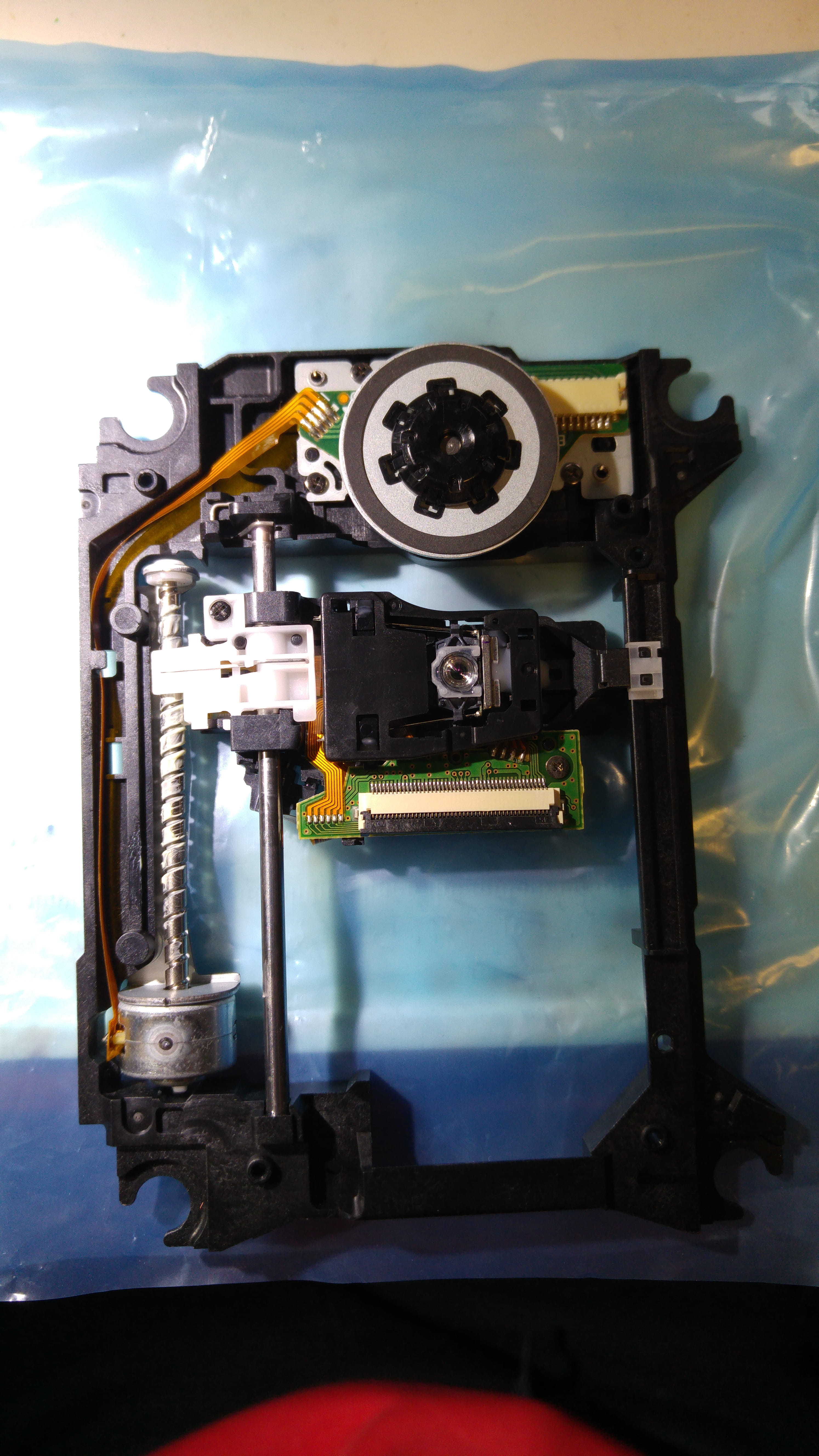

Zamowiłem drugi napęd, cały set gotowy do montażu i zaprogramowałem z kodu QR według instrukcji

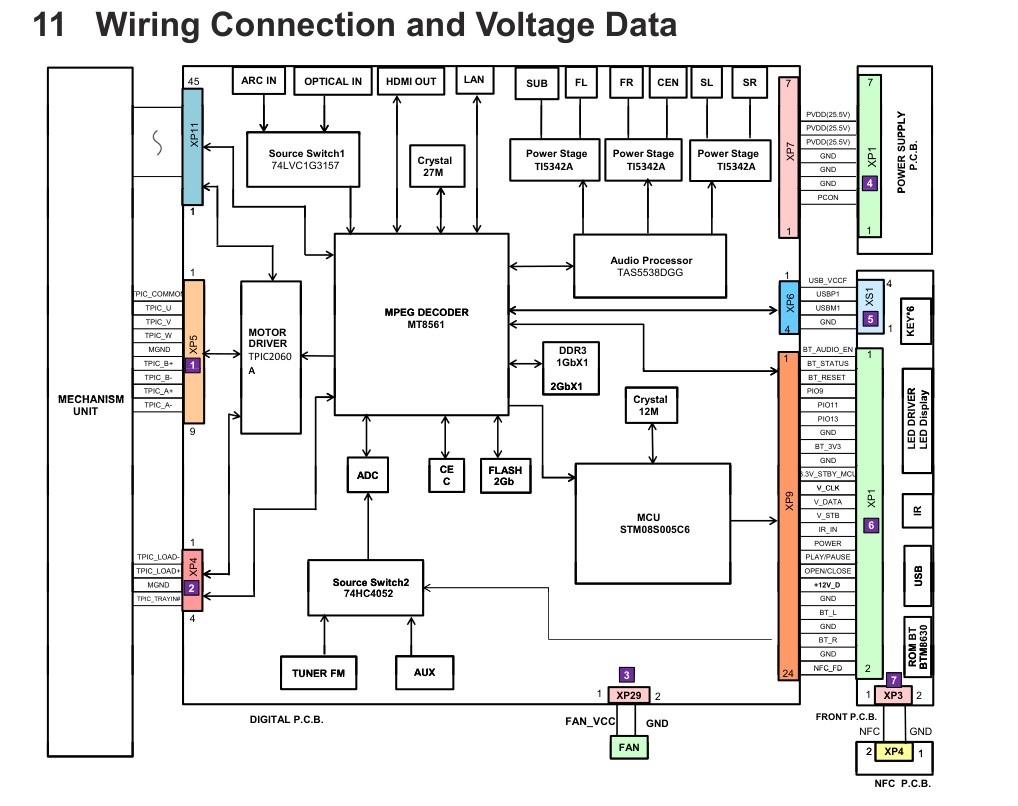

Znalazłem kawałek schematu od tego urządzenia
Sprawdziłem wszystkie elektrolity - są ok

TPIC2060A (V)
n.12 - 3.3
n.25 - 12V
n.28 - 5.18
n.34 - 5 (26kΩ)
n.45 - 0 (2.4Ω)
n.47 - 0 (2.4kΩ)



You have to be logged in to view the files attached to this post.
