Re: Problem z zaprogramowaniem układu KBC w Lenovo 320-15IAP
by Google Adsense [BOT] • 5 March 2021, 13:23
#4 Re: Problem z zaprogramowaniem układu KBC w Lenovo 320-15IAP [SOLVED]
by matic • 6 March 2021, 12:27
dir wrote:Używam kabla 30pin typ A ale może dla tej płyty powinien być 32pin??It is enough to use a 30-pin cable, because the pins 31, 32 of the keyboard connector are not needed for programming the KBC chip on this board.
But be aware, because in this case the cable on Vertyanov programmer should be shifted by two pins in right. So, it is need to connect the 30-pin FFC cable to the pins 3 - 32 of Vertyanov programmer (pin 1 of FFC cable should be connected to pin 3 on Vertyanov).

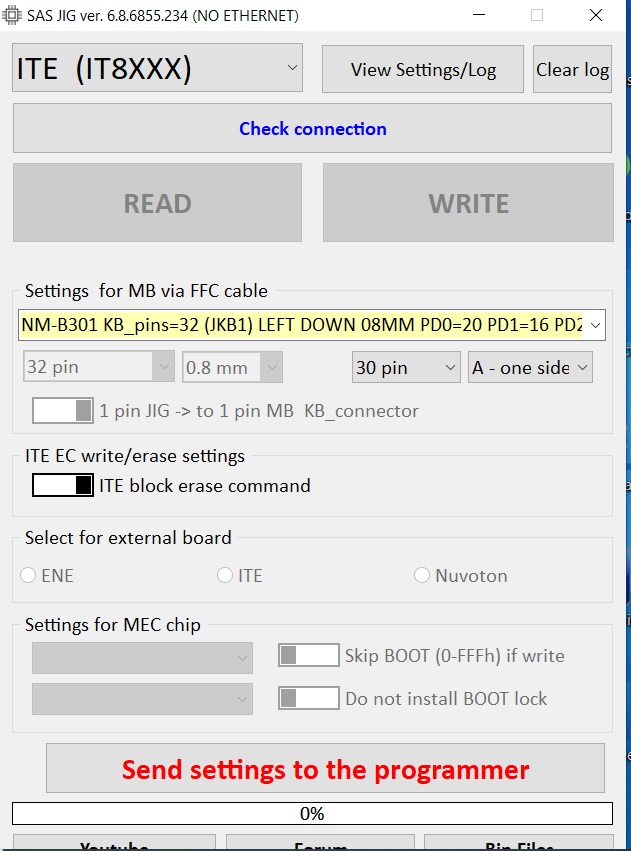

Don't forget to uncheck the box "1 pin JIG connected to 1 pin kb_conn MB", because the pin 1 of motherboard is connected to pin 32 of Vertyanov programmer.
matic wrote:Nie zapomnij odznaczyć pola "1 pin JIG podłączony do 1 pin kb_conn MB", ponieważ pin 1 płyty głównej jest połączony z pinem 32 programatora Vertyanov.

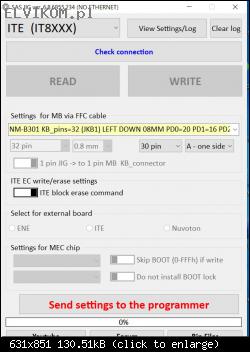

Tak właśnie ta opcja jest nie aktywna, wyszarzała. (w podobny sposób programowałem płytę NM-A841 i tam pole "1 pin JIG podłączony do 1 pin kb_conn MB" dało się zmienić na "1 pin JIG -> to end pin MB KB_connector")
