#1 Wistron LSN-3 SWG Transistor identification

by matic • 7 May 2019, 22:15
*******************************************************************
Laptop: Lenovo ThinkPad T420s
Motherboard: Wistron LSN-3 SWG MB, H0226-2, 48.4KF79.021
*******************************************************************
Hello!

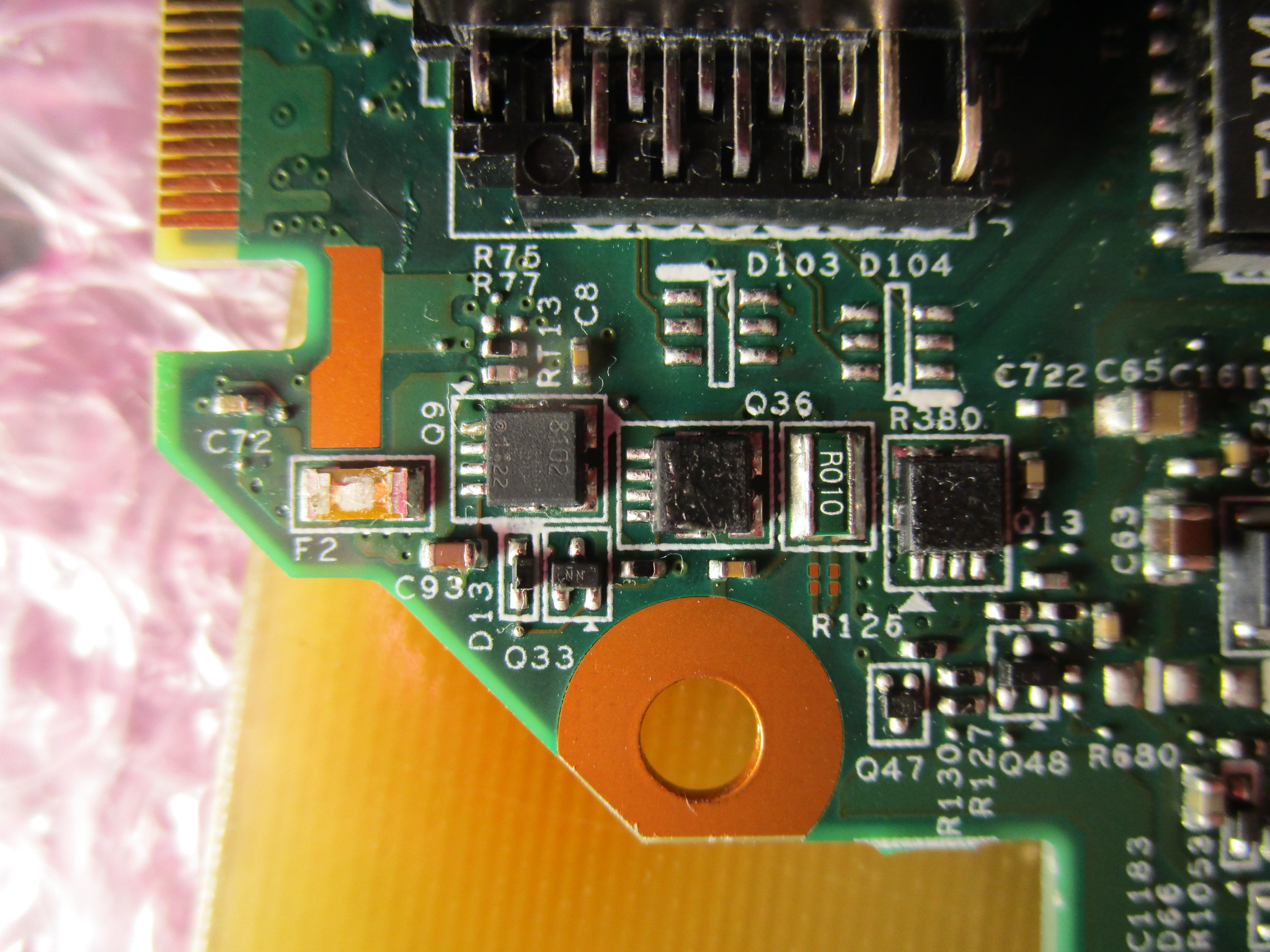

Please, identify the transistor Q9 on the following picture. It is first input protection transistor.
Package: DFN 3x3mm


Re: Wistron LSN-3 SWG Transistor identification

by Google Adsense [BOT] • 7 May 2019, 22:15

#2 Re: Wistron LSN-3 SWG Transistor identification  [SOLVED] 

by xamledyD • 8 May 2019, 11:01
Hello!
According to the schematic, it may be P-channel MOSFET Si7121DN in PowerPAK 1212-8 Dual package - I linked datasheet below.



You have to be logged in to view the files attached to this post.

#3 Re: Wistron LSN-3 SWG Transistor identification

by notfound • 8 May 2019, 11:30
Hello Matic,

see screenshot.


Best Regards
notfound

#4 Re: Wistron LSN-3 SWG Transistor identification

by matic • 14 May 2019, 19:04
Transistor replaced with AON7401 and everything works ok.

Thank both of you for your help. @xamledyD was quicker, so help goes to him.
